Extruder-OMG V2
Suitable filament diameter 1.75mm Real-time dual drive Extrusion reduction ratio: 1:3 Synchronous gear: material aluminum 48 teeth Adaptation: 42 stepper motor-standard mounting hole 31mm All metal material-host CNC finishing Optional: short distance and long distance extrusion C F (F remote extrusion mounting plate is-acrylic 4.5mm thickness) (C short-range mounting plate is 4mm aluminum 6063 material) Adapter mounting plate: suitable for standard 20*20 aluminum profile For left and right hands (just adjust the direction of the extruder stepper motor) Dimensions: 19.5*42*48mm Weight about: 73g (F) Weight about: 89g (C) Features: *The tightest filament feeding pipe gap design supports soft filament TPU printing. * Upgraded filament bite gear-deeper concave and sharper. Reduce the phenomenon of planing. *Withdrawal speed can be unlimited, *1:3 reduction ratio, 3 times the torque output can support a lighter stepping motor, *Lightweight design to reduce movement inertia. *All metal structure, better heat dissipation.

Completely solve the drawing
Withdraw at high speed without damaging the filament.



Upgraded Concave Gears
Wheel deepens the groove of the gear, which makes it easier to remove the filament residue and solve the problem of slipping after planing of the old model. Execute motor commands. Ensure accurate feeding and withdrawal. Make the printed model more accurate.

Step Value Modification
42/Stepper motor 1.8° (pulse number) 16 subdivision: 370 32 breakdown: 764 64 subdivision: 1528 >DEFAULT_E0_STEPS_PER_UNIT 370 #Default Axis-E Steps Per Unit (steps/mm) The diameter of the extrusion wheel: 8.85mm The above values are for reference only: it is recommended to print a fixed numerical size model to measure the accuracy of the printed product. The value of the adjustable step value: such as 365~385

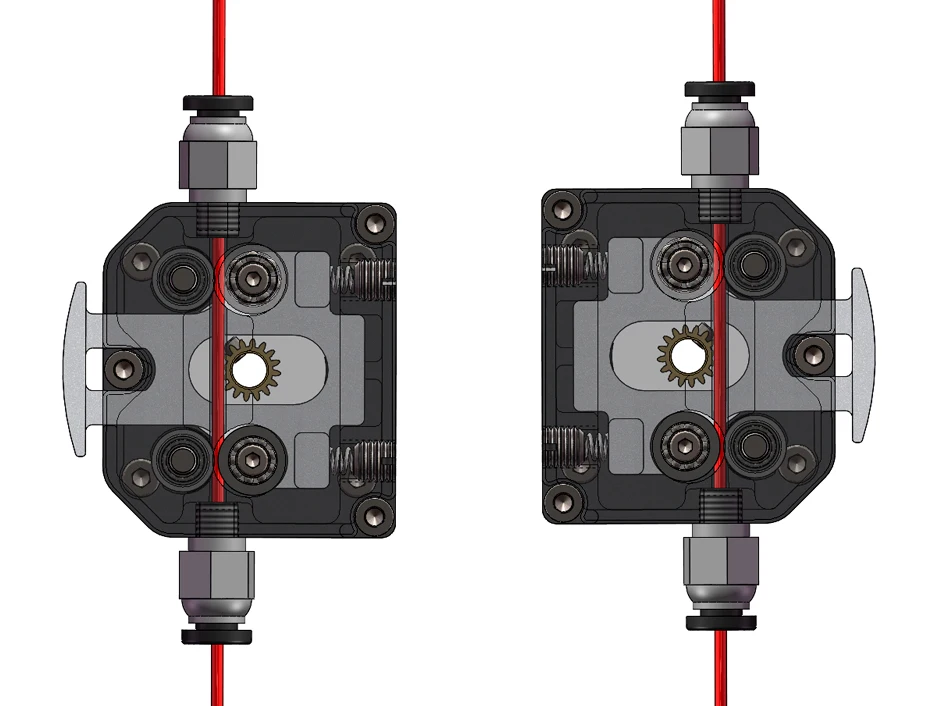

Left-Right Handed Compatibility
Adjust the#Invert the stepper direction. >INVERT_E0_DIR 1 or 0

Double spring compression
Can be adjusted appropriately to suit different materials. The factory has been adjusted to the standard.

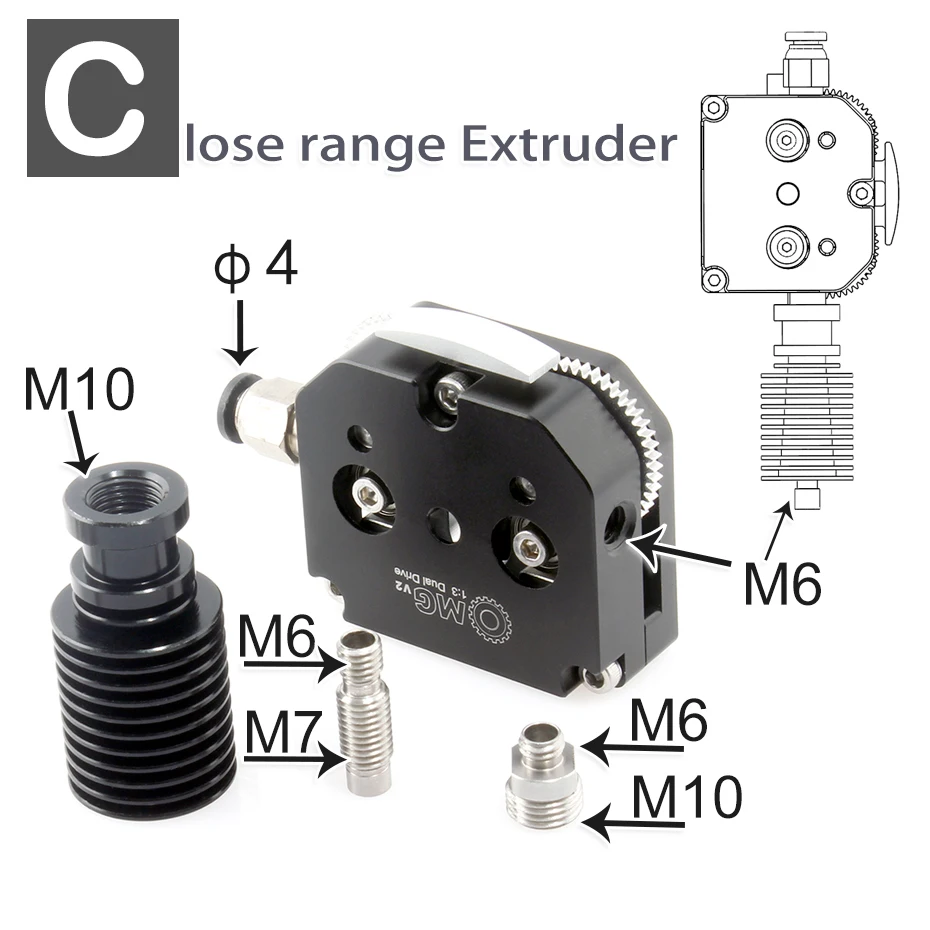

Close and Far distances Both ok
Short-range extruder-more suitable for printing soft filaments such as TPU.

OEM Wholesale Support



Supports short distance extrusion and long distance extrusion.



PACKING IN BOX ------- C



Installation
Pay attention to the stepper motor gear and tighten the screw position to prevent interference with the reduction gear. Correct as shown below.





TEVO Titan Extruder Full Kit with NEMA 17 Stepper Motor for 3D Printer ssupport both Direct Drive and Bowden Mounting Bracket
Package one: TEVO Titan extruder
Package Two: Titan Step motor
Package Three: TEVO Titan Extruder+ Stepper motor
Package Four: TEVO Titan Extruder + Stepper motor+V6 Direct Hotend
Package Five: TEVO Titan Extruder+ Stepper motor+ Volcano Bowden Hotend
Product name: Titan Extruder
Filament diameter:1.75mm
Product name: Titan stepper motor
Size:42*42*23mm
Heater: 24V
Thermistor: 100K NTC 3590
Product name: Titan step motor
Size:42*42*23mm
Phase: 2 Phase
Voltage: 12V
Current: 0.7 A/Phase
Resistance: 4.0 ± 10%Ω/Phase
Inductance: 3.2 ± 20% mH/Phase
Holding Togque: 14 N.cm
Insulation Class: B
Step Angle: 1.8±5% /STEP
Specification:
TEVO Titan Extruder has gone through real machine testing for over a month with over 200 hours printing time. Easy to assemble, can start printing within 15 minutes. Interchangeable connector, can replace with your preferred model. Support both direct drive mode and bowden
Reminder, you need stepper motor with D shaft to use with TEVO Titan Extruder.
• Payment Method
If you have any trouble with payment ,please contact us . We can accept any payment method you would like to choose .
• Quality Warranty
1.Please contact us if you have any problem of quality .
2.90 Days of quality warranty .
3.Defective items must be returned within the warranty period.
•Feedback
Feedback is very important for us.We appreciate your positive feedback if you are statisfy with our products and service.
Please contact us before leaving any negative or neutral feedback. We will solve any problem in 24hous.
3D Printer parts Homers/TEVO All 3D Printers Titan Extruder Fully KitsTitan Extruder for 1.75mm 3D printer extruder for J-head bowden
Product name: Titan Extruder
Filament diameter:1.75mm
Product name: Titan step motor
Size:42*42*40mm
Support Group (Tech & Warranty Support ) : https://bit.ly/2HhzvpA
Homers/TEVO All Files (SD Card Files& Firmware) : https://bit.ly/35K4yDX
Homers/TEVO Torubleshooting (Knowledge-base) : https://bit.ly/36P2RnQ
Homers/TEVO Products Reviewers (Youtube/Blog) : https://bit.ly/38Spdr9
Homers/TEVO Business Partner : Skype : salemanager@tlmaker.com
TEVO Gold Updating Aluminum bowden flex extruder upgrate kit 1.75mm flexible filament extruder Tarantula 3D Printer
• Payment Method
If you have any trouble with payment ,please contact us . We can accept any payment method you would like to choose .
• Quality Warranty
1.Please contact us if you have any problem of quality .
2.30 Days of quality warranty .
3.Defective items must be returned within the warranty period.
•Feedback
Feedback is very important for us.We appreciate your positive feedback if you are statisfy with our products and service.
Please contact us before leaving any negative or neutral feedback. We will solve any problem in 24 hours.
TEVO Titan Extruder Full Kit with NEMA 17 Stepper Motor for 3D Printer Support both Direct Drive and Bowden Mounting Bracket
Product name: Titan Extruder
Filament diameter: 1.75mm
Product name: Titan stepper motor
Size: 42*42*23mm
Sepcification:
1. TEVO Titan Extruder has gone through Real Machine Testing for over a Month with over 200 hours Printing Time.
2. Easy Calibration: can Start Printing within 15 Minutes.
3. Interchangeable Connector: can Replace with your Preferred Model. Support both Direct Ddrive Mode and Bowden
4. Support Various Filament: Flexible Filament, PLA, ABS, Nylon, etc, it Support Various Filament in its way through the Bed and its a better quality
5. Consistent Extrusion Cheap
Reminder: You need Stepper Motor with D Shaft to use with TEVO Titan Extruder.
D Shaft Stepper Motor is Ensure that the Gear does not Slip, Increase Reliability
Please Choose:
Package one: TEVO Titan Extruder
Package Two: Titan Step Motor
Package Three: TEVO Titan Extruder + Stepper Motor
Package Four: TEVO Titan Extruder + Stepper Motor + V6 Direct Hotend
Package Five: TEVO Titan Extruder + Stepper Motor + Volcano Bowden Hotend
TEVO Titan Extruder Full Kit with NEMA 17 Stepper Motor for 3D Printer ssupport both Direct Drive and Bowden Mounting Bracket
Package one: TEVO Titan extruder
Package Two: Titan Step motor
Package Three: TEVO Titan Extruder+ Stepper motor we
Package Four: TEVO Titan Extruder + Stepper motor+V6 Direct Hotend
Package Five: TEVO Titan Extruder+ Stepper motor+ Volcano Bowden Hotend
Product name: Titan Extruder
Filament diameter:1.75mm
Product name: Titan stepper motor
Size:42*42*23mm
Specification:
TEVO Titan Extruder has gone through real machine testing for over a month with over 200 hours printing time. Easy to assemble, can start printing within 15 minutes. Interchangeable connector, can replace with your preferred model. Support both direct drive mode and bowden
Reminder, you need stepper motor with D shaft to use with TEVO Titan Extruder.
